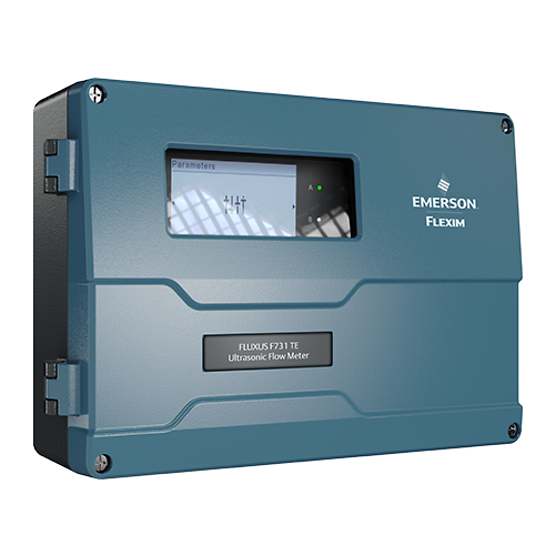

Flexim FLUXUS F731 TE - Heat and Cold Metering in any Environment
Enquire about this Product
The Flexim FLUXUS F731 TE is specially designed for heating and cooling thermal energy measurement, measuring flow, temperature, and calculating thermal energy - all by one device. Calculations are carried out in accordance with EN 1434 Thermal Energy meter standards and the F731 TE measures the volumetric flow rate non-intrusively via its clamp-on ultrasonic transducers. Simultaneously, temperature probes monitor the temperatures at the supply and return lines of the heating or cooling system - either non-intrusively with clamp-on sensors or by use of insertion temperature probes. It can be equipped with two measurement channels to measure two pipes simultaneously and allow complete monitoring and accurate measurements.
- Manufacturer:
Emerson
- Valve Type:
Flexim Ultrasonic Liquid Flow Meters
- Sub-Type:
- Virtually unlimited application range - even at extreme temperatures from -200 up to +630 °C (-328 up to +1166 °F).
- Integrated thermal energy calculation.
- Highly accurate flow measurement with paired and traceable calibrated ultrasonic transducers.
- Highly accurate temperature measurement with paired and traceable calibrated temperature sensors (according to DIN EN 1434-1).
- Extremely high measuring dynamics from the lowest to the highest flow velocities - captures even the slightest flows at nighttime.
- Simple, cost-effective retrofitting without any disruption to supply.
- Tamper-proof storage of measuring data.
- Advanced Meter Verification.
- ISO 24062 compliant.
- Flow disturbance correction to reduce required straight runs down to 2D inlet.
